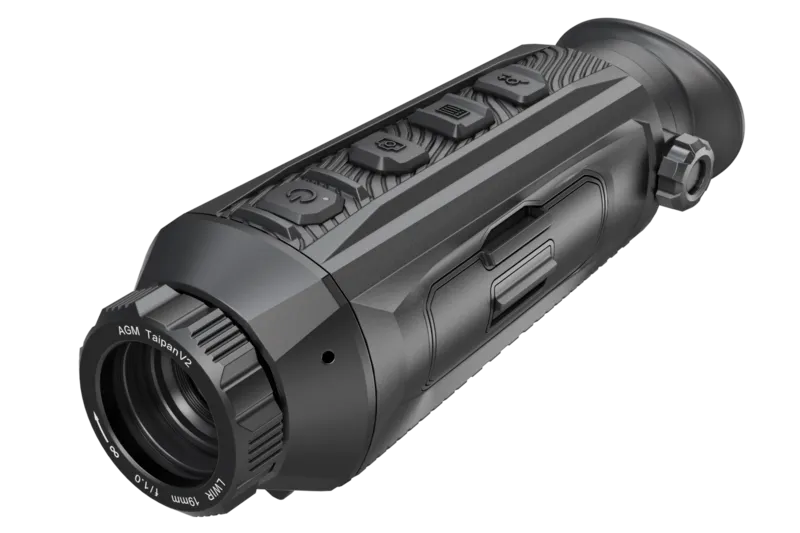

Taipan V2 19-384 Thermal Imaging Monocular - AGM

Compact, powerful thermal imaging with a 950 m detection range, 384 × 288 resolution and exceptional thermal sensitivity.

The AGM Taipan V2 19-384 is a versatile, high-performance thermal imaging monocular designed for professional observation, wildlife monitoring, hunting, security applications and outdoor exploration.

Featuring a 384 × 288 thermal sensor, advanced 19 mm F1.0 optics and an impressive thermal sensitivity of less than 20 mK NETD, the Taipan V2 delivers detailed thermal images, even in complete darkness and challenging environmental conditions.

With a detection range of up to 950 metres, a smooth 50 Hz refresh rate and a compact, lightweight design, this thermal monocular provides an excellent balance between detection performance, field of view and portability.

Whether you're observing wildlife, conducting security patrols or exploring unfamiliar terrain, the AGM Taipan V2 19-384 offers reliable thermal imaging performance in a practical, easy-to-use package.

Key Features

• 384 × 288 thermal resolution – Detailed thermal imaging for reliable heat signature detection.

• Less than 20 mK NETD – Excellent thermal sensitivity for detecting subtle temperature differences.

• 19 mm F1.0 objective lens – Balanced optical performance for versatile observation.

• 950 m detection range – Detect human-sized heat signatures at distances of up to 950 metres.

• 2× optical magnification – Digital zoom options of 4×, 8× and 16×.

• 50 Hz refresh rate – Smooth imaging when scanning terrain or tracking moving objects.

• 1024 × 768 OLED display – Sharp, high-contrast viewing experience.

• Four thermal colour palettes – White Hot, Black Hot, Red Hot and Fusion.

• Integrated photo and video recording – Capture observations with the built-in 16 GB memory.

• Wi-Fi connectivity – Connect to compatible devices through the AGM application.

• Replaceable 18650 battery – Up to 6.5 hours of continuous operation.

• IP67 waterproof protection – Designed for demanding outdoor conditions.

• Lightweight construction – Weighing approximately 310 g without the battery.

• 3-year limited warranty – Official AGM European warranty coverage.

Advanced Thermal Imaging Performance

High-Sensitivity 384 × 288 Thermal Sensor

At the heart of the AGM Taipan V2 19-384 is a 12 μm VOx uncooled thermal detector with a resolution of 384 × 288 pixels.

Combined with an exceptional thermal sensitivity of less than 20 mK NETD, the sensor detects subtle temperature differences, providing improved image detail and thermal contrast.

This allows users to distinguish heat signatures against complex backgrounds, including vegetation, woodland and uneven terrain.

Unlike conventional optical devices, thermal imaging does not require visible light, making the Taipan V2 particularly effective for nighttime observation.

19 mm Optics with 950 m Detection Range

The 19 mm F1.0 objective lens provides a practical balance between detection distance and field of view.

With a 13.7° × 10.3° field of view, the monocular allows efficient scanning of open areas while retaining sufficient detail for observation at longer distances.

Its detection range of up to 950 metres makes it suitable for wildlife monitoring, perimeter observation, outdoor security and professional field applications.

The adjustable focus ring ensures sharp imaging at different observation distances.

Smooth 50 Hz Imaging and Digital Magnification

The 50 Hz refresh rate provides fluid thermal imaging when panning across landscapes or observing moving subjects.

Starting at 2× magnification, users can select digital magnification levels of 4×, 8× and 16× for a closer view of distant heat signatures.

The integrated 1024 × 768 OLED display delivers a clear, high-contrast viewing experience.

Multiple Thermal Colour Palettes

The AGM Taipan V2 19-384 features four selectable thermal colour palettes:

• White Hot: Displays warmer objects in white against darker backgrounds.

• Black Hot: Displays warmer objects in black for alternative contrast.

• Red Hot: Highlights warmer areas in red for rapid detection.

• Fusion: Uses multiple colours to represent temperature variations.

Additional image settings, including brightness, contrast and scene optimisation, allow users to adapt the display to their surroundings and viewing preferences.

Smart Features and Connectivity

The AGM Taipan V2 19-384 integrates several advanced functions to enhance observation and usability.

Photo, Video and Audio Recording

Capture thermal images and record video directly onto the built-in 16 GB memory. Audio recording is also supported, allowing important observations to be documented for later review.

Wi-Fi Connectivity

Integrated Wi-Fi enables wireless connection to compatible mobile devices through AGM's application, supporting convenient image viewing and media management.

Picture-in-Picture (PIP)

The PIP function allows users to magnify a selected portion of the thermal image while maintaining visibility of the wider scene.

Hot Tracking

Automatically highlights the hottest area within the image, helping users quickly locate prominent heat signatures.

Distance Measurement

An integrated distance estimation function provides additional assistance when assessing observed objects.

Customisable Image Settings

Multiple scene modes, tone adjustments and Flat Field Correction (FFC) options help optimise thermal image quality for different observation conditions.

Built for Demanding Outdoor Conditions

The AGM Taipan V2 19-384 combines durable construction with a compact, ergonomic handheld design.

Its IP67-rated housing offers protection against dust and water, while its operating temperature range of -30°C to +55°C makes it suitable for demanding outdoor environments.

Measuring just 173 × 60 × 64 mm and weighing approximately 310 g without the battery, the monocular is easy to transport and comfortable to operate.

The replaceable rechargeable 18650 lithium battery provides up to 6.5 hours of continuous operation, with additional power available through the USB-C interface.

Which AGM Taipan V2 Model Should You Choose?

The AGM Taipan V2 19-384 occupies the middle position within the 384-resolution Taipan V2 range, offering a versatile combination of viewing width, magnification and detection capability.

• AGM Taipan V2 15-384: Ideal for users prioritising a wider field of view and observation at shorter distances.

• AGM Taipan V2 19-384: The balanced all-round choice, combining a 19 mm lens, 2× base magnification and a 950 m detection range.

• AGM Taipan V2 25-384: Better suited to users prioritising longer-distance detection, with a range of up to 1,200 metres and higher base magnification.

For users seeking a compact thermal monocular capable of both general scanning and medium-range observation, the AGM Taipan V2 19-384 offers an excellent combination of performance, versatility and portability.

Technical Specifications

Why Choose the AGM Taipan V2 19-384?

The AGM Taipan V2 19-384 combines advanced thermal imaging technology with straightforward operation and a durable, portable design.

Its high-sensitivity thermal detector, 950 m detection capability, integrated recording functions and replaceable battery make it a practical choice for demanding outdoor observation.

Discover the AGM Taipan V2 19-384 and experience reliable thermal imaging performance wherever your activities take you.
